A multifunctional, multiscale, reconfigurable surface

Composite surface has features that can move microparticles, mix droplets, repel biofilms and more

By Leah Burrows, SEAS Communications

A multifunctional, multiscale, reconfigurable surface
FLIPS consists of a micro-structured solid substrate beneath a ferrofluid in which magnetic particles are suspended. When a magnetic field is applied, the magnetic particles respond, taking on the shape of the underlying topography. Credit: Harvard SEAS

(CAMBRIDGE, Mass.) — An international team led by researchers from the Wyss Institute at Harvard University and Harvard’s John A. Paulson School of Engineering and Engineering and Applied Sciences (SEAS) has developed a dynamic surface with reconfigurable topography that can sculpt and re-sculpt microscale to macroscale features, change its friction and slipperiness, and tune other properties based on its proximity to a magnetic field.

Made by infusing a magnetic fluid into a solid microtexture, the surface could be used to direct the movement and assembly of micro-scale particles, regulate the flow and mixing of millimeter-size droplets, or turn adhesive properties on and off at the macroscale. The research, published in Nature, was the result of an interdisciplinary collaboration between chemists, physicists, fluid mechanicists, materials scientists, applied mathematicians, and marine biologists.

“Multifunctional materials capable of performing various tasks are a new, promising area of research,” said senior author Joanna Aizenberg, Ph.D., a Founding Core Faculty member of the Wyss Institute who is also the Amy Smith Berylson Professor of Materials Science and Professor of Chemistry & Chemical Biology at SEAS. “The demonstrated applications – new forms of reversible, hierarchical particle self-assembly, manipulation and transport of non-magnetic matter in a magnetic field by topography-induced hydrodynamic forces, precisely timed chemical reactions, and rewritable, spatial addressing of directional adhesion, friction, and biofilm removal – are only a small representative sample of all the possibilities this new concept opens up to the imagination.”

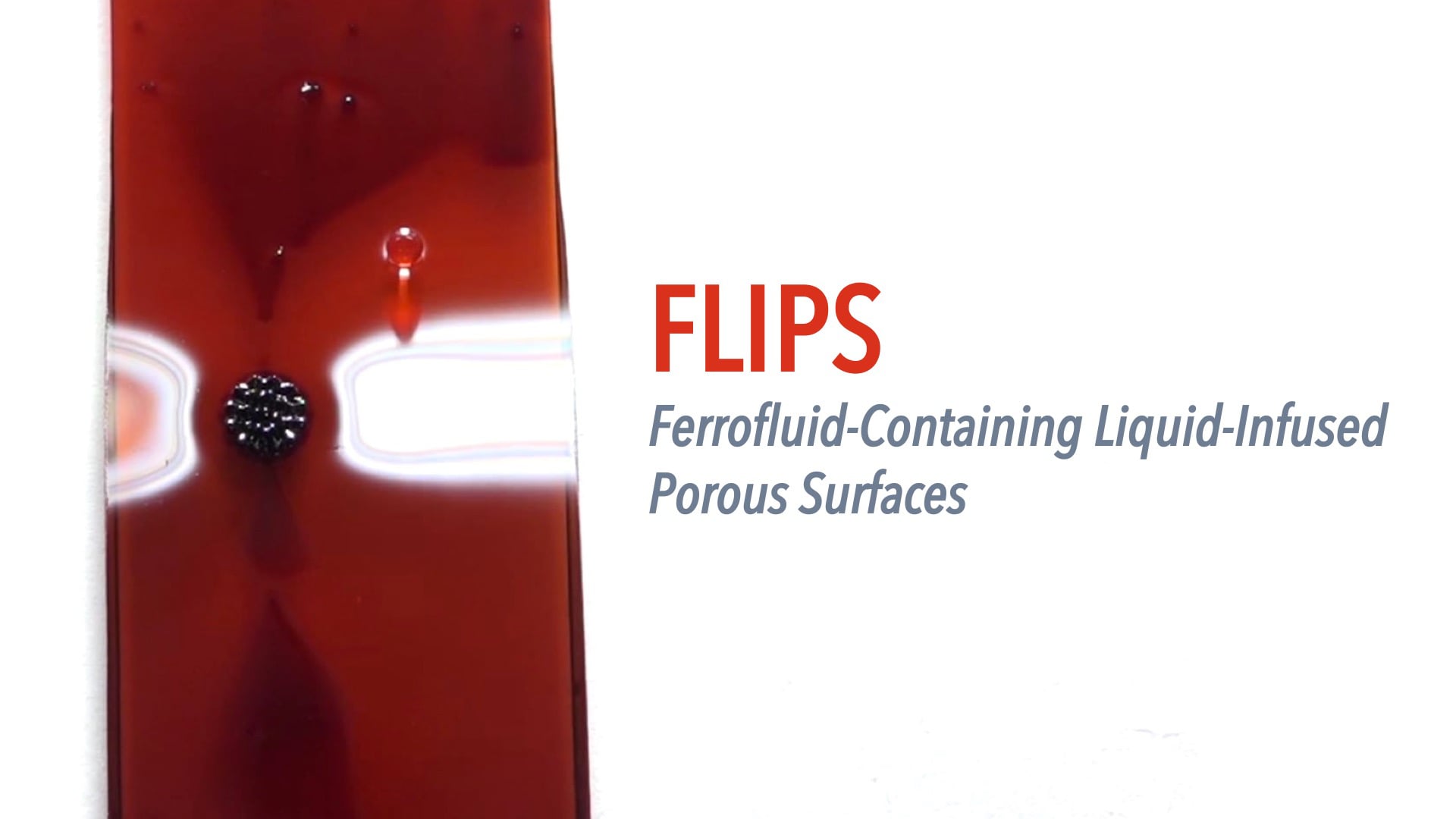

As a magnetic field is applied and moved, the ferrofluid component of FLIPS responds dynamically, allowing the surface to be endlessly reconfigured. Credit: Harvard SEAS

The surface is nicknamed FLIPS, short for “ferrofluid-containing liquid-infused porous surfaces.” FLIPS is a composite surface made up of two distinct parts: a micro-structured solid substrate and a ferrofluid, which consists of magnetic particles suspended in a liquid. Without a magnetic field, the surface is flat, slick and smooth. But when a magnetic field is applied, the ferrofluid responds, taking on the shape of the underlying topography. The combination of a structured solid surface with a responsive liquid allows the surface to be endlessly re-writable, a kind of dynamic Etch-a-Sketch® with reconfigurable patterning, directional friction, adhesion, and more.

The specific topographical patterns of the surface can be finely tuned at the micron, millimeter and centimeter scales by controlling the properties of the ferrofluid, the geometry of the substrate, the strength of the magnetic field, and the distance of FLIPS from the magnets.

That level of tunablility means FLIPS can do a lot across a range of scales. The researchers demonstrated that FLIPS can:

  • Direct the movement of microscopic objects such as bacteria and colloidal particles, which would be useful for micro-scale manufacturing and for investigating the individual and collective behaviors of mobile micro-organisms
  • Remove biofilm that accumulates on its surface
  • Coat droplets of liquid and use the controllable topography of FLIPS to control their movement and delay mixing for precisely-timed chemical reactions in small-scale diagnostics
  • Be used in pipes for continuous liquid pumping
  • Act as a reversible adhesive between two large-scale objects

FLIPS is compatible with all kinds of surfaces and can even be integrated with another technology developed in the Aizenberg Lab, SLIPS, an ultra-slick surface coating.

“Each of these applications can be further extended,” said Wendong Wang, Ph.D., first author of the paper and a former postdoctoral fellow at SEAS who is now an Alexander von Humboldt Postdoctoral Fellow at the Max Planck Institute for Intelligent Systems. “Our results suggest that FLIPS allows much more diverse combinations of functions and capabilities than surfaces that have only a simple, single-scale topographical response. This could be a platform for a lot of future technologies.”

This research was a collaboration between SEAS, the Wyss Institute, the Max Planck Institute, Aalto University School of Science in Finland, and the University of Oslo. It was co-authored by Jaakko V. I. Timonen; Andreas Carlson; Cathy T. Zhang; Stefan Kolle; Alison Grinthal; Tak-Sing Wong; Benjamin Hatton; Sung Hoon Kang; Stephen Kennedy; Joshua Chi; Robert Thomas Blough; and L. Mahadevan, the Lola England de Valpine Professor of Applied Mathematics, Organismic and Evolutionary Biology, and Physics at SEAS, from Harvard University; and Dirk-Michael Drotlef and Metin Sitti from the Max Planck Institute for Intelligent Systems in Germany.

The study was supported by the Department of Energy, the National Science Foundation, and the Max Planck Society.
