A test that detects COVID-19 variants in your spit

Low-cost device could allow consumers to test themselves for multiple strains of SARS-CoV-2 at home

By Lindsay Brownell

A test that detects COVID-19 variants in your spit
miSHERLOCK is a self-contained at-home diagnostic platform that allows users to test their own saliva for the presence of SARS-CoV-2 and can distinguish between multiple variants of the virus. Credit: Wyss Institute at Harvard University

(BOSTON) — With the Delta variant wreaking havoc on unvaccinated populations and COVID-19 cases spiking around the world, the pandemic is far from over. Despite the impressively fast development of SARS-CoV-2 diagnostic tests over the last year and a half, the vast majority of patient samples must still be sent to a lab for processing, which slows down the pace of COVID-19 case tracking. If a sample is to be tested for a specific variant of the virus, it must be genetically sequenced, which takes even more time and resources.

Now, researchers at the Wyss Institute for Biologically Inspired Engineering at Harvard University, the Massachusetts Institute of Technology (MIT), and several Boston-area hospitals have created an inexpensive, CRISPR-based diagnostic test that allows users to test themselves for SARS-CoV-2 and multiple variants of the virus using a sample of their saliva at home, with no extra instrumentation needed.

The diagnostic device, called Minimally Instrumented SHERLOCK (miSHERLOCK), is easy to use and provides results that can be read and verified by an accompanying smartphone app within one hour. It successfully distinguished between three different variants of SARS-CoV-2 in experiments, and can be rapidly reconfigured to detect additional variants like Delta. The device can be assembled using a 3D printer and commonly available components for about $15, and re-using the hardware brings the cost of individual assays down to $6 each.

“miSHERLOCK eliminates the need to transport patient samples to a centralized testing location and greatly simplifies the sample preparation steps, giving patients and doctors a faster, more accurate picture of individual and community health, which is critical during an evolving pandemic,” said co-first author Helena de Puig, Ph.D., a Postdoctoral Fellow at the Wyss Institute and MIT.

The diagnostic device is described in a paper published today in Science Advances.

From supply chain to SHERLOCK

A test that detects COVID-19 variants in your spit
An accompanying smartphone app analyzes the fluorescent readout generated by the assay, giving users a clear “Positive” or “Negative” result. The results can also be shared with doctors and health organizations to track a disease’s spread. Credit: Wyss Institute at Harvard University

As an Instructor in Pediatrics at Boston Children’s Hospital with a specialization in infectious diseases, co-first author Rose Lee, M.D. has been working on the front lines of the COVID-19 pandemic for more than a year. Her experiences in the clinic provided inspiration for the project that would ultimately become miSHERLOCK.

“Simple things that used to be ubiquitous in the hospital, like nasopharyngeal swabs, were suddenly hard to get, so routine sample processing procedures were disrupted, which is a big problem in a pandemic setting,” said Lee, who is also a Visiting Fellow at the Wyss Institute. “Our team’s motivation for this project was to eliminate these bottlenecks by providing accurate diagnostics for COVID-19 that were less dependent on global supply chains and could accurately detect the variants that were starting to emerge.”

For the SARS-CoV-2 detection piece of their diagnostic, the group turned to a CRISPR-based technology created in the lab of Wyss Core Faculty member and senior paper author Jim Collins, Ph.D. called “specific high sensitivity enzymatic reporter unlocking” (SHERLOCK). SHERLOCK makes use of CRISPR’s “molecular scissors” to snip DNA or RNA at specific locations, with an added bonus: upon recognizing its target sequence, this specific type of scissors also cuts other pieces of DNA in the surrounding area, allowing it to be engineered to produce a signal indicating that the target has been successfully cut.

A test that detects COVID-19 variants in your spit
A CRISPR-based reaction within the diagnostic device produces a fluorescent signal in response to the presence of SARS-CoV-2 viral RNA in a patient’s saliva within an hour. Credit: Wyss Institute at Harvard University

The researchers created a SHERLOCK reaction designed to cut SARS-CoV-2 RNA at a specific region of a gene called Nucleoprotein that is conserved across multiple variants of the virus.  When the molecular scissors – an enzyme called Cas12a – successfully binds to and cuts the Nucleoprotein gene, single-stranded DNA probes are also cut, producing a fluorescent signal. They also created additional SHERLOCK assays designed to target a panel of viral mutations in Spike protein sequences that represent three SARS-CoV-2 genetic variants: Alpha, Beta, and Gamma.

Armed with assays that could reliably detect viral RNA within the accepted concentration range for FDA-authorized diagnostic tests, the team next focused their efforts on solving what is arguably the most difficult challenge in diagnostics: sample preparation.

Spit, wait, scan

“When you’re testing a sample for nucleic acids [like DNA or RNA], there are a lot of steps you need to do to prepare the sample so you can actually extract and amplify those nucleic acids. You have to protect the sample while it’s in transit to the testing facility, and also make sure it’s not infectious if you’re dealing with a transmissible disease. In order to make this a truly easy-to-use diagnostic test, it was important for us to simplify that as much as possible,” said co-first author Xiao Tan, M.D., Ph.D., a Clinical Fellow at the Wyss Institute and Instructor of Medicine in Gastroenterology at Massachusetts General Hospital.

The team chose to use saliva rather than nasopharyngeal swab samples as their diagnostic source material, because it’s easier for users to collect saliva and studies have shown that SARS-CoV-2 is detectable in saliva for a greater number of days post-infection. But unprocessed saliva presents challenges of its own: it contains enzymes that degrade various molecules, producing a high rate of false positives.

A test that detects COVID-19 variants in your spit
The diagnostic procedure only requires that a user spit into the sample preparation chamber and then transfer the collection disc to the reaction chamber and press a plunger, which activates the reaction and minimizes the risk of cross-contamination. Credit: Wyss Institute at Harvard University

The researchers developed a novel technique to solve that problem. First, they added two chemicals called DTT and EGTA to saliva and heated the sample to 95°C for three minutes, deactivated the enzymes producing the false positive signal from the untreated saliva and sliced open any viral particles. They then incorporated a porous membrane that was engineered to trap RNA on its surface, which could finally be added directly to the SHERLOCK reaction to generate a result.

To integrate the saliva sample preparation and the SHERLOCK reaction into one diagnostic, the team designed a simple battery-powered device with two chambers: a heated sample preparation chamber, and an unheated reaction chamber. A user spits into the sample preparation chamber, turns on the heat, and waits three to six minutes for the saliva to be wicked into the filter. The user removes the filter and transfers it to the reaction chamber column, then pushes a plunger that deposits the filter into the chamber and punctures a water reservoir to activate the SHERLOCK reaction. 55 minutes later, the user looks through the tinted transilluminator window into the reaction chamber and confirms the presence of a fluorescent signal. They can also use an accompanying smartphone app that analyzes the pixels being registered by the smartphone’s camera to provide a clear positive or negative diagnosis.

The researchers tested their diagnostic device using clinical saliva samples from 27 COVID-19 patients and 21 healthy patients, and found that miSHERLOCK correctly identified COVID-19-positive patients 96% of the time and patients without the disease 95% of the time. They also tested its performance against the Alpha, Beta, and Gamma SARS-CoV-2 variants by spiking healthy human saliva with full-length synthetic viral RNA containing mutations representing each variant, and found that the device was effective across a range of viral RNA concentrations.

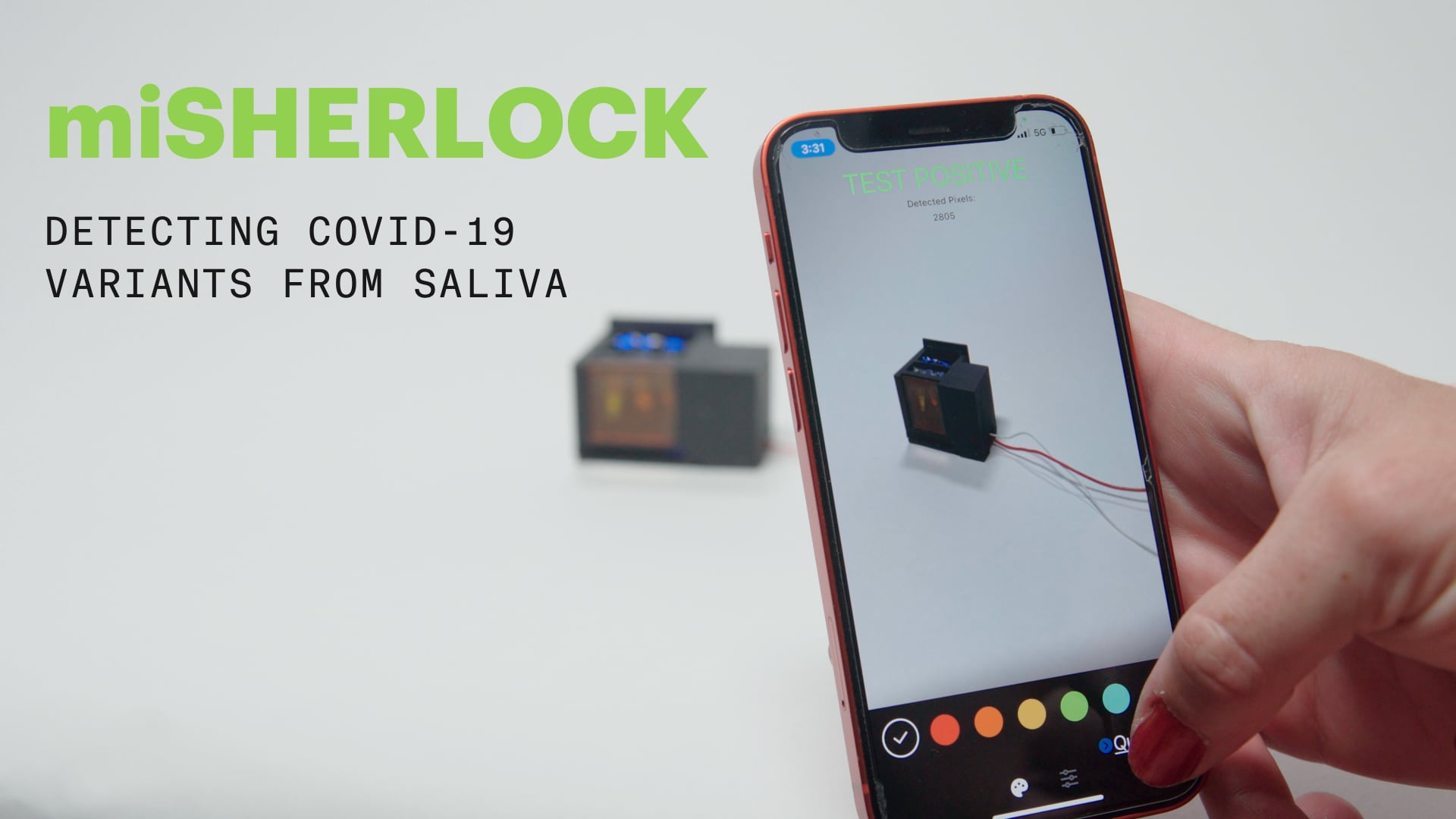

This video demonstrates the miSHERLOCK diagnostic device and how a patient would use it to test themselves for the presence of SARS-CoV-2 in their spit. Credit: Wyss Institute at Harvard University

“One of the great things about miSHERLOCK is that it’s entirely modular. The device itself is separate from the assays, so you can plug in different assays for the specific sequence of RNA or DNA you’re trying to detect,” said co-first author Devora Najjar, a Research Assistant at the MIT Media Lab and in the Collins Lab. “The device costs about $15, but mass production would bring the housing costs down to about $3. Assays for new targets can be created in about two weeks, enabling the rapid development of tests for new variants of SARS-CoV-2 as well as for other infectious diseases.”

Ready for the real world

A test that detects COVID-19 variants in your spit
The four first authors of the miSHERLOCK paper, pictured right to left: Devora Najjar, Rose A. Lee, Helena de Puig, and Xiao Tan. Credit: Wyss Institute at Harvard University

The miSHERLOCK team created their device with low-resource settings in mind, as the pandemic has brought to light the vast inequalities in healthcare access that exist between different parts of the world. The device’s hardware can be built by anyone with access to a 3D printer, and the files and circuitry designs are all publicly available online. The addition of a smartphone app was also aimed at resource-limited settings, as mobile phone service is available virtually anywhere in the world, even in areas that are difficult to reach on foot. The team is eager to work with manufacturers who are interested in producing miSHERLOCK at scale for global distribution.

“When the miSHERLOCK project started, there was almost no SARS-CoV-2 variant monitoring happening. We knew that variant tracking was going to be incredibly important when evaluating the long-term effects of COVID-19 on local and global communities, so we pushed ourselves to create a truly decentralized, flexible, user-friendly diagnostic platform,” said Collins, who is also the Termeer Professor of Medical Engineering & Science at MIT and an Institute Member of the Broad Institute of MIT and Harvard. “By solving the sample prep problem, we’ve ensured that this device is virtually ready for consumers to use as-is, and we’re excited to work with industrial partners to make it commercially available.”

“By combining cutting-edge biotechnology with low-cost materials, this team has created a powerful diagnostic device that can be manufactured and used on a local level by people without advanced medical degrees. It’s a perfect example of the Wyss Institute’s mission in action: to put life-changing innovations in the hands of people who need them,” said Wyss Founding Director Don Ingber, M.D., Ph.D., who is also the Judah Folkman Professor of Vascular Biology at Harvard Medical School and Boston Children’s Hospital, and Professor of Bioengineering at the Harvard John A. Paulson School of Engineering and Applied Sciences.

Additional authors of the paper include Luis R. Soekensen, Nicolaas Angenent-Mari, and Angelo Mao from the Wyss Institute and MIT; and Nina Donghia, Nicole Weckman, Audrey Ory, Carlos Ng, Peter Nguyen, Thomas Ferrante, Geoffrey Lansberry, Hani Sallum, and James Niemi from the Wyss Institute.

This research was supported by the Wyss Institute for Biologically Inspired Engineering at Harvard University, the Paul G. Allen Frontiers Group, the Harvard University Center for AIDS Research (an NIH-funded program that is supported by the following NIH co-funding and participating Institutes and Centers: NIAID, NCI, NICHD, NIDCR, NHLBI, NIDA, NIMH, NIA, NIDDK, NINR, NIMHD, FIC, OAR), The Burroughs-Wellcome American Society of Tropical Medicine and Hygiene, an American Gastroenterological Association Takeda Pharmaceutical Research Scholar Award, and an MIT-TATA Center fellowship.
